ATS 018Grooved Drum Slack Winder

ATS 018Grooved Drum Slack Winder
Views: 552 Product Code: New Machinery
Availability: In Stock
0.00Rs Ex Tax: 0.00Rs
Qty: Add to Cart

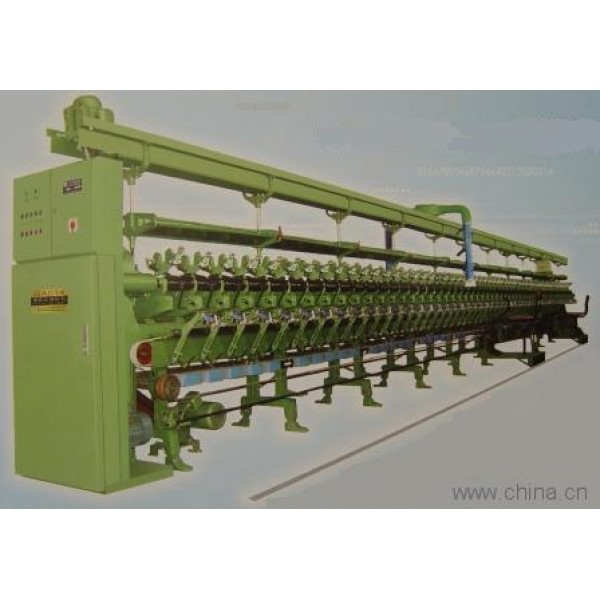

Model GA012G grooved drum slack winder is suitable for winding cone or cylindrical soft bobbin from bobbin or tube with pure cotton, blended chemical fibre, pure wool or chemical fibre for supplying bobbin for high temperature-pressure dyeing machine.



Main technical parameters:

1. Type: grooved drum type

2. Spindle number: 60, 80, 100(Standard) or 120

3. Spindle gauge: 254mm

4. Winding speed: 350m/min, 400m/min

5. End-breakage auto stop motion: individual spindle control

6. Drum transverse moving distance: about 0.5~3 mm

7. Drum transverse moving frequency: 14.2 times/min

8. Anti wading device: ribbon breaking control

9. Motor: main motor: 2x1.8kw; auxiliary motor: 1x0.37kw

10. Demension(LxWxH): 100 spindle machine: 13570x1400x1525mm
