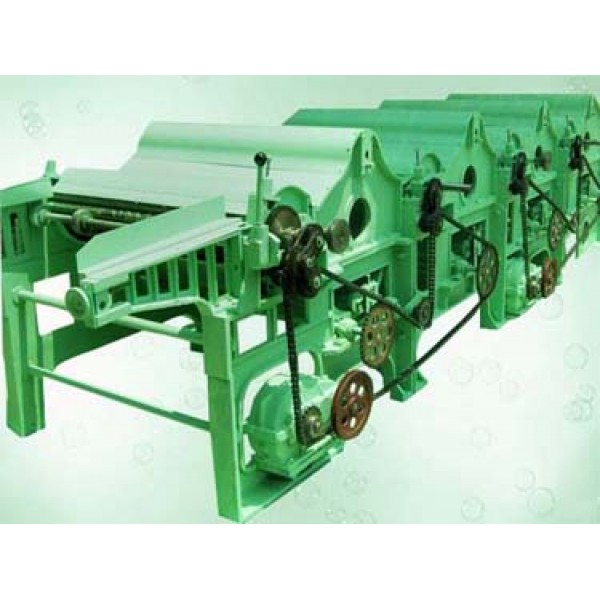

ATS 002 Cleaning Machine

ATS 002 Cleaning Machine
Views: 3236 Product Code: New Machinery
Availability: In Stock
0.00Rs Ex Tax: 0.00Rs
Qty: Add to Cart

Applications and Features:

Subject machine adopts the advanced technologies of internal and abroad. It's proved by the factories of high quality, high output, low power consumption, small area occupition, easilly operated, better impurity removal, safe and reliable.

It's used to process materials such as lint cotton, quit cover, short fibers, seed cotton, waste yarn, rags and linen etc.

Main technical parameters:

A. Output: 120 KG/Hour.

B. Lickerin diameter: 250MM

C. Lickerin speed: first one: 1,900rpm; second, third and fourth: 2,100rpm; fifth: 2,200rpm.

D. Feeding roller dia and speed: front roller: 40mm, 5.1rpm; back roller: 57mm, 13.4rpm.

E. Dust case: diameter: 500mm

F. Fan speed: 2,800rpm.

G. Motor: first one Y112M-7.5KW; second one Y112M-5.5KW, third, fourth and fifth Y132S-5.5KW,

H. Wire model: 1.09x75°xteeth/5.64MM.

I. Outside dimensions(L*W*H): 5,600x1,720x1,160MM

J. Weight: 2,600KG
