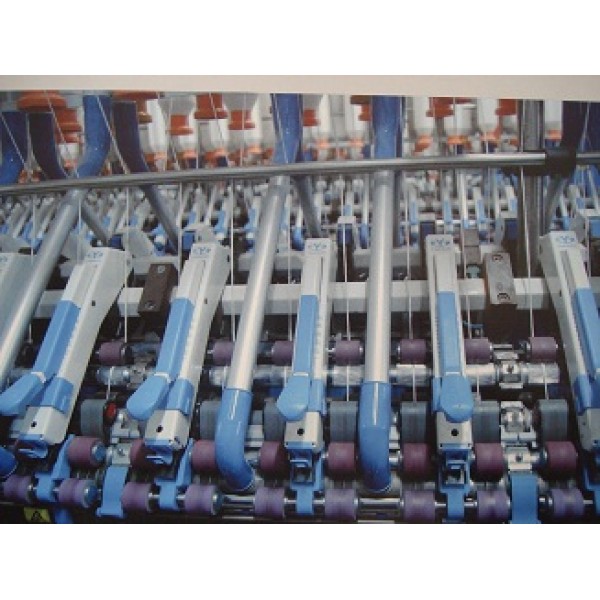

ATS 021 Compact Spinning System

ATS 021 Compact Spinning System
Views: 591 Product Code: New Machinery
Availability: In Stock
0.00Rs Ex Tax: 0.00Rs
Qty: Add to Cart


△Apply to new and retrofit to all types of ring spinning machines.

△Fibers exceeding 3mm reduced by up to 70%, single yarn strength increased by 10%, Uster parameters improved significantly.

△Quality on the same level with Ningbo Dechang, Jiangyin Huafang etc. Chinese major compact systems.



△Applied with 4-roller drafting system, hence makes the system runs more stable and reliable.

△Long service life lattice apron drives proactively.

△The universal cots are more convenient, more stable while lower cost.


Negative Pressure System Features

△Centralized suction design ensures a stable suction pressure, the motor serves stable with a long running period whilst low fault rate. The design of installing the duct on the upper position decreases the wind drag and ensure an even negative pressure, at the same time, the upper position of the duct is clear in line of sight. The installation process is very convenient-even don't need to unmount the bobbin hanger. Self-scutching equipment ensures the uniform of negative pressure during running time, decrease the differentation between yarn and between machines.


Condensing System Feature

△Patented condensing device, small roller is separated with negative pressure duct, it will be easy to check the working status of the small roller and bearings. changing the bearings will not damage the negative pressure duct, retrofit the machine to sirospun just need change the negative pressure duct, it makes the process much earsier. The patented tension bracket tenses the lattice apron evenly meanwhile eary to uninstall, during the working process, lattice apron can self-align without break down whilst prevent balling up.

△German bottom roller and Chinese high precision bottom roller without mechanical wave for choice.


Structure Features of the Drafting System

△The structure of the patented condensing system is concision, roller is separated with the negative pressure duct, it's eary to check the performance of the roller and bearings. In the meantime, bearing change will not damage the nagetive pressure duct, retrofit  the machine to sirospun just need to replace the negative pressure duct.


Lattice Apron Features

△The patented tension bracket tenses the lattice apron evenly and easy to uninstall, latice apron works stable without balling up defect. The lattice arpon is anti-static with  a smaller working resistance whiel long life.


Structure features of the gearing devices

△Applied with orginal packaging imported bearings and high intensity gears with composite material, the gearing devices are much lighter, low noise and will not destroy the roller.


The Features of the Cot Bracket

△The cot bracket is easy to mount and unmount, convenient for the cot machine.
