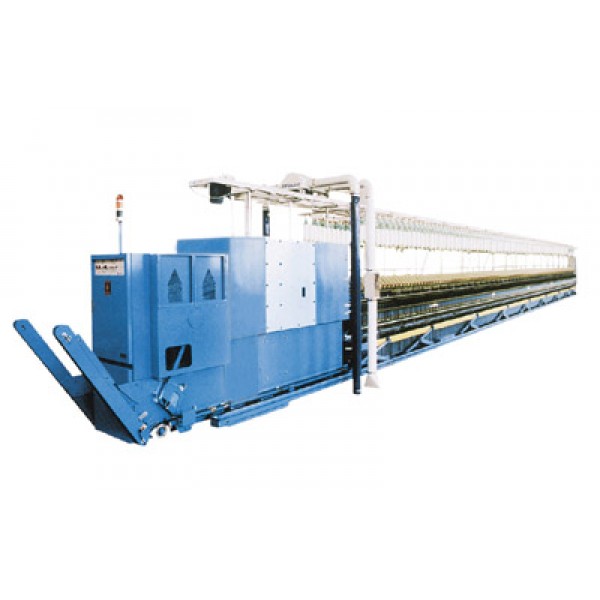

ATS 009 Ring Spinning Frame

Main Specification

NO. of Spindle(spindles)：

Spindle range, from 576～1008, starts 384 increased by 12 spindles

Spindle Gauge(mm)：

70mm

Lifting(mm)：

180mm、205mm(Bare blade type spindle)

180mm、200mm(Aluminum type spindle)

Spindle Speed(r/pm)：

12000～20000 r/min

Twist Direction：

Single jockey pulley system for Z or S twist
Double jockey pulley system for Z&S twist

Yarn Counts：

below 40mm，51～65mm

Fiber：

Cotton, PC, or Blends

Yarn Counts：

4.9～97 tex（120～6Ne）

Twisting：

230～1740 t/m（5.8～44t/in）

Total Draft：

10～70times(Generally Supplies 10～50 times)

Break Draft Range：

1～1.5times

Draft System：

3 rows roller, short or long apron, double draft, cradle compression

Roving Creel：

6 rows creel, suit for Ø152×406 roving
4 rows creel, suit for Ø128×320roving

Ring Diameter：

Ø38、Ø42、Ø45

Broken-end collector：

Pneumatic flute type for six spindles and individual suction fan for each frame with integrated under ground air exhaust.

Voltage：

Three phase 380±10% 50HZ China, the broad product may choose according to the local request
Single phase，220±10%  50HZ
