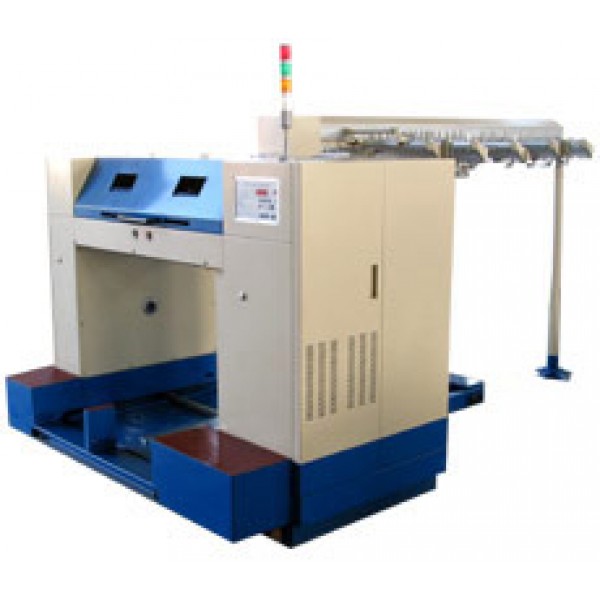

ATS 016 Drawing Frame

ATS 016 Drawing Frame
Views: 1301 Product Code: New Machinery
Availability: In Stock
0.00Rs Ex Tax: 0.00Rs
Qty: Add to Cart

Characteristics:
1.The machine is suitable for fiber variety, with stable quality, and high output speed.
2.Adopt high quality four-up and four-down guide roller, pressure stick style double-curve drafting structure .
The sliver quality is good and steady.
3. The whole set adopts entire frame iron casting spare to be composed, powerful rigidity, good anti-seismic capability
and good stability.
4.The main motor adopts the frequency converter to dominate stepless timing, electromagnetism brake, so causes the drive to promote speed stably. Turning round at an average speed, quick brake, favorable to the sliver quality.
5.Adopt PLC and counting disk with flow picture composed of high performance single chip to complete the logic control and malfunction judge of the machine so the electrical equipment domination is more stable and dependable.
6.Ideal photoelectricity self-ceasing unit, the photoelectricity self-ceasing unit is in front of the sliver- flowing machine, coiling roller self-ceasing unit, so the malfunction self-ceasing is more dependable.
7. The automatic can changer selected by customers, can decrease the labor intensity of workers, and improve work efficiency.
8.Energetic style feeding unit with belt drive (SDFA306B)

Technical standard:

Aperture number                 1 burl 2 holes
Aperture distance                570mm
Maximum output speed        10m/s(600m/min)
Total drafting multiple          5-14 times
Drafting style                      5 over 4 with pressure bar drafting
Feeding style                       Energetic style lognitudinal feed
Feeding sliver number          6-8 pieces
Applicable fiber variety         cotton and cotton-synthetics
Suitable fiber length              20-75mm
Output sliver can dimensions ¢350, ¢400, ¢500X900 or 1100
Main motor power                ( 5.5KW attached electromagnetism brake )
Air-blower motor power         0.75KW/2P
Can changer motor power      0.25KW/4P
Mainframe OAD                    2,120x950x1,645mm
Machine weight                     1,900kg
