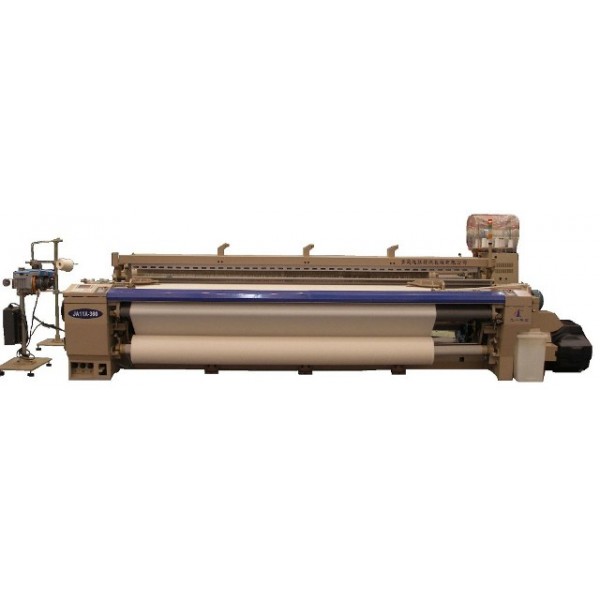

ATS 030 series air jet looms combine advantages of every kind of textile looms home and abroad which ensure excellent performance.
JA11A360 air jet loom is the latest developped large wideth model with double-color or four colors,electric let-off of double beams and double servos, machinery or electric take-up, single(double) rear beam, single(double) side-shrink width, positive cam or dobby, maximum speed is 550rpm.
Main technical Parameters:
A. Reed space: nominal: 190, 210, 230, 250, 280, 340, 360; useful reeding width: nominal width reduction 0~60cm(190~250cm), reduction 0~80cm(280cm or above).
B. Working range: short yarn: 60S/1~5.8S/1
C. Welf slection: 2 colors mixing, 2 colors at will or 4 colors.
D. Drive: Rush start motor, proframmed and direct drive&stop machanism by electromagnetic brake.
E. Welf insertion: main and sub-nozzles combined system(stretch nozzle), profile reed, auxiliary main nozzle.
